Newest version of the most widely used laser FMS in the world

Mazak is the largest manufacturing of Flexible Manufacturing Systems,
with a production history of more than 30 years.
FMS is designed with the flexibility required for shorter product life cycles,
minimum in-process inventory, just-in-time production and other demands of today’s manufacturing environment.

EXTENSIBLE MANUFACTURING CELL

Newest version of the most widely used laser FMS in the world

The Mazak EXTENSIBLE MANUFACTURING CELL can be expanded up to four machines, extend the pallet stocker,
and install the management controller to meet your future requirements after the initial installation.

OPTIPLEX 3015Ⅱ +
EXTENSIBLE MANUFACTURING CELL

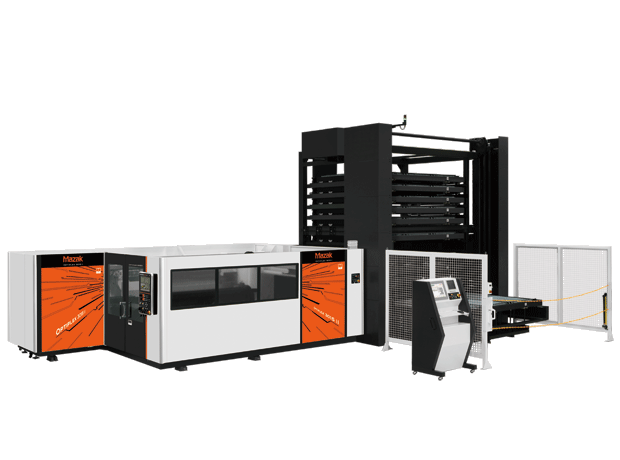

QUICK CELL 3015

Compact worksheet change- type laser FMS

Worksheets are automatically loaded/unloaded to/from the laser processing machine.
The stocker can store both raw material and finished workpieces
resulting in reduced floor space requirements.

OPTIPLEX 3015 FIBER Ⅱ +
QUICK CELL 3015 shown with optional 6 pallet stocker

Fastest loading / unloading in its class

The loader and unloader units each have a separate drive system instead of one used for both. As a result, the operation time of each unit is much faster when compared to a conventional system.

Flexibility to meet your production requirements

  • The QUICK CELL 3015 can be installed after the initial machine installation
  • Stocker can be expanded to 6, 10, 14 levels after installing the standard base system
  • Number of pallets used for material and the number of pallets used for finished parts can be freely selected for the 6, 10, and 14 level stockers

Compact floor space requirement

By loading and unloading the pallets at the same position, factory floor space is used more efficiently.

QUICK CELL 3015

standard specification

93 m2 (1001 ft2)
QUICK CELL 3015
with optional
6 pallet stocker

108 m2 (1163 ft2)


The QUICK CELL 3015 has a compact floor space requirement when compared to conventional systems.
Maintenance area and space for opening / closing safety fence not included.
* Includes OPTIPLEX 3015 FIBER Ⅱ

COMPACT MANUFACTURING CELL

Pallets with the material and finished worksheets are stored in shelves.
The number of micro joints can be minimized since the finished worksheet is unloaded to the stocker with the pallet.

OPTIPLEX 3015 II +
COMPACT MANUFACTURING CELL

SMART MANUFACTURING CELL 3015/140

Automation system for laser processing machine with finished parts sorting

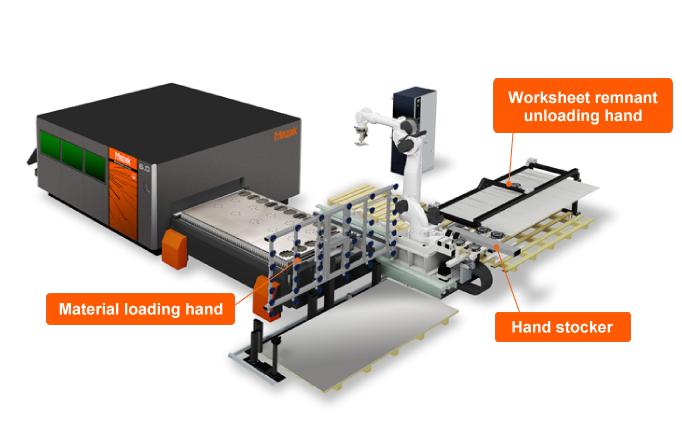

Automated cut parts sorting by robot after laser processing Material loading,
parts sorting and worksheet remnant unloading - all done in one system.

SMART MANUFACTURING CELL 3015/140
* The image shows system configuration with OPTIPLEX 3015 DDL.
Safety fence is not shown.

Sorting by robot

  • Automatic sorting to replace time- consuming manual sorting and to make cut parts transfer to the next process easier.
  • Accurate robot sorting eliminates delivery of wrong parts to the next process.

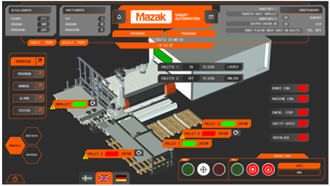

Robot sorting program generation by MAZAK SMART SYSTEM

Robot sorting programs are generated from nested parts location coordinate data from the ”MAZAK SMART SYSTEM”.
Dedicated controller with material loading, material remnant unloading and cleaning cycle patterns for convenient operation



Applicable machine models

OPTIPLEX 3015 DDL, OPTIPLEX 015 FIBER III, OPTIPLEX 3015 II,
OPTIPLEX NEXUS 3015 FIBER, OPTIPLEX NEXUS 3015,
OPTIPLEX CHAMPION 3015 FIBER
