OPTIPLEX CHAMPION 3015 FIBER

Product: 2D Laser, Laser Processing Machines

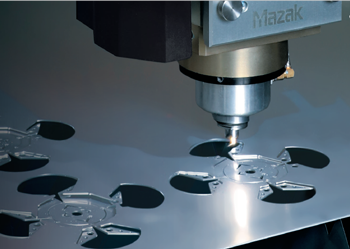

Fiber laser processing machine with exceptional value for cutting thin- to mid-thickness worksheets
OPTIPLEX CHAMPION 3015 FIBER

(North American and Japan markets only)

  • Intelligent functions automatically perform setup and cutting tasks (Monitoring of cutting status - optionally available)
  • Focus point is measured by oprator and adjusted according to material to improve cutting speed and surface finish. Focus distance can be changed by turning a dial.
  •

  • Considerable reduction in gas and electrical power consumption.
    The OPTIPLEX CHAMPION 3015 FIBER does not require laser gas, which is usd by CO2 laser machines - also electrical power consumption is considerably lower, which results in a large reduction of running cost.
  • Equipped with OPTIPLEX CHAMPION 3015 FIBER - 2.0kw and 3.0kw laser resonator for high performance cutting

Machine Specifications

Specification Values
Capacity Maximum Cutting Size Right/Left 3050 mm / 120.08 in
Maximum Cutting Size Longitudinal 1525 mm / 60.04 in
Feed Axes Travel (X axis) 3100 mm / 122.05 in
Travel (Y axis) 1580 mm / 62.2 in
Travel (Z axis) 150 mm / 5.91 in
