3D FABRI GEAR 400 III

Chain conveyor (option) shown


Thanks to CNC scheduler software, automatic and continuous 3D laser cutting of large, long structural material.High precision cutting of complex features by 3D laser head and automatic focus positioning.



  • Can cut long, large structural materials
    Max. material length

    : 8080 mm
      (option : 6180 mm, 12280 mm, 15180 mm )

    Max. Cutting length for unloading : 8080 mm
      (option : 6180 mm, 12280 mm, 15180 mm )
    Max. material diameter  : round pipe Φ406.4 mm, H beam  300 mm,
       square pipe  □ 300 mm

  •

  • Optional chain conveyor for increased versatility and maximum quantity of workpieces
  • Optimum focus positioning is automatically determined resulting in considerably reduced piecing time

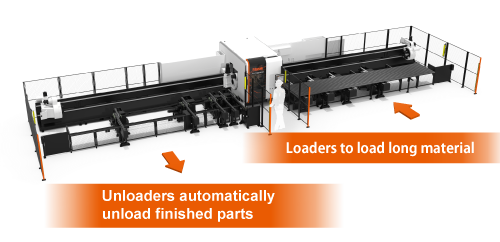

  • Just load long material in the loading station, and 3D cutting is performed automatically as well as transfer of finished parts to the unloading station
  • Complete all cutting processes from 3D cutting to tapping in just one machine when equipped with the optional tapping unit [Max. M12 (1/2 UNC and UNF)]
  • 2.5kW and 4.0kW are available.

The 3D FABRI GEAR 400 lll, winner of the “47th Machine Design Awards" in Japan   MORE



Machine Specifications

Specification Values
Capacity
Maximum Cutting Size (Round) 406.4 mm / 16.00 in
Maximum Cutting Size (Square) 300 mm / 11.81 in
Maximum Workpiece Length (Loading) 8080 mm / 318.11 in
Maximum Workpiece Length (Unloading) 8080 mm / 318.11 in
Feed Axes Travel (X axis) 8790 mm / 346.06 in
Travel (Y axis) 1270 mm / 50.00 in
Travel (Z axis) 370 mm / 14.57 in
