3D FABRI GEAR 220 III

3D FABRI GEAR 400 III with optional chain conveyor shown



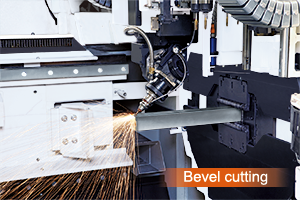

Thanks to CNC scheduler software, automatic and continuous 3D laser cutting of long pipes and structural material



  • Max. material length  : 8150 mm
      (option : 6250 mm, 12350 mm)
    Max. Cutting length for unloading : 8150 mm
      (option : 3000mm, 6250mm, 12350 mm )
    Max. material diameter  : round pipe Φ220mm,
       square pipe  □ 152.4 mm

  •

  • Optional chain conveyor for increased versatility and maximum quantity of workpieces
  • Optimum focus positioning is automatically determined resulting in considerably reduced piecing time

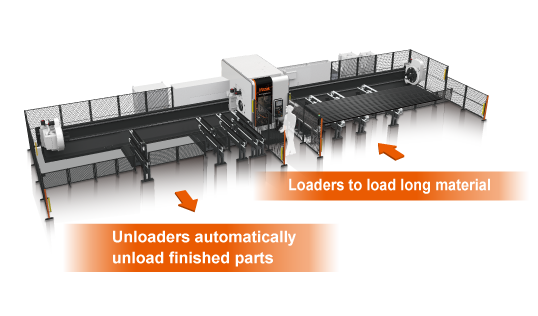

  • Just load long material in the loading station, and 3D cutting is performed automatically as well as transfer of finished parts to the unloading station
  • Complete all cutting processes from 3D cutting to tapping in just one machine when equipped with the optional tapping unit [Max. M12 (1/2 UNC and UNF)]
  • 2.5kW and 4.0kW are available.



Machine Specifications

Specification Values
Capacity
Maximum Cutting Size (Round) 220 mm / 8.66 in
Maximum Cutting Size (Square) 152.4 mm / 6.0 in
Maximum Workpiece Length (Loading) 8150 mm / 320.87 in
Maximum Workpiece Length (Unloading) 8150 mm / 320.87 in
Feed Axes Travel (X axis) 9055 mm / 356.50 in
Travel (Y axis) 985 mm / 38.78 in
Travel (Z axis) 370 mm / 14.57 in
